Hi, this is my third blog post. This post will explain how to use GoRouter with ShellRoute in a Flutter application.

I assume you're already familiar with GoRouter, but here I will guide you through the entire setup and usage of GoRouter.

Introduction

GoRouter is a popular navigation library in the Flutter community. It provides a way to handle navigation and deep links seamlessly. Without GoRouter, you would have a hard time implementing navigation using the traditional named routes of Scaffold or MaterialApp.

Here, I will focus on how to use ShellRoute. If you're just starting with GoRouter, I suggest heading to my previous blog post that explains it separately.

https://blog.sophoun.com/flutter-routing-using-gorouter

Let's get into the details.

ShellRoute

ShellRoute provides a way to implement sub-navigation in your application, such as a bottom navigation bar or a sidebar for web interfaces.

Imagine you have a login screen for your users. After they log in to the app, they will see a sidebar with various functionalities, allowing them to navigate while maintaining the correct selection state.

The scenario above isn't easy to implement without ShellRoute. Let's look at the code.

Define ShellRoute

I assume you already have a GoRouter defined in your application. Below is how you define ShellRoute in Flutter.

Here is my router.dart file.

dart
import 'package:go_router/go_router.dart';
import 'package:go_router_example/category_page.dart';
import 'package:go_router_example/dashboard_page.dart';
import 'package:go_router_example/home_page.dart';
import 'package:go_router_example/login_page.dart';

final goRouter = GoRouter(
  initialLocation: "/login",
  routes: [
    GoRoute(
      path: '/login',
      builder: (context, state) => const LoginPage(),
    ),
    ShellRoute(
      builder: (context, state, child) => HomePage(child: child),
      routes: [
        GoRoute(
          path: "/dashboard",
          builder: (context, state) => const DashboardPage(),
        ),
        GoRoute(
          path: "/category",
          builder: (context, state) => const CategoryPage(),
        ),
      ],
    ),
  ],
);

As you can see here, I define GoRouter, and the initial location is /login, which points to the GoRoute path /login when the application starts. I have also defined ShellRoute, which has two children GoRoutes named /dashboard and /category. The builder function of ShellRoute has a child parameter that is passed via callback; this child is the widget of the route that was navigated to. This allows you to design the sub-navigation as you wish within the HomePage.

Here is the code in my home_page.dart

dart
import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

class HomePage extends StatefulWidget {
  const HomePage({
    super.key,
    required this.child,
  });

  final Widget child;

  @override
  State createState() => _HomePageState();
}

class _HomePageState extends State {
  int selectedIndex = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text("Home"),
      ),
      body: Row(
        children: [
          NavigationRail(
            destinations: const [
              NavigationRailDestination(
                icon: Icon(Icons.dashboard),
                label: Text("Dashboard"),
              ),
              NavigationRailDestination(
                icon: Icon(Icons.category),
                label: Text("Category"),
              ),
            ],
            selectedIndex: selectedIndex,
            labelType: NavigationRailLabelType.all,
            onDestinationSelected: (value) {
              selectedIndex = value;
              switch (value) {
                case 0:
                  context.go("/dashboard");
                  break;
                case 1:
                  context.go("/category");
                  break;
                default:
                  throw Exception("Unknow destination");
              }
            },
          ),
          Expanded(
            child: widget.child,
          )
        ],
      ),
    );
  }
}

Here, I have defined a NavigationRail that has two destinations: one for /dashboard and one for /category. I also have a child widget that is accepted via the constructor and placed as a child. This child widget is passed via ShellRoute when it navigates.

By defining goRouter and HomePage, I can customize the navigation and easily navigate between those children.

Below is the code in my login_page.dart file

dart
import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

class LoginPage extends StatefulWidget {
  const LoginPage({super.key});

  @override
  State createState() => _LoginPageState();
}

class _LoginPageState extends State {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text("Login"),
      ),
      body: Center(
        child: FilledButton(
          onPressed: () {
            context.go("/dashboard");
          },
          child: const Text("Login"),
        ),
      ),
    );
  }
}

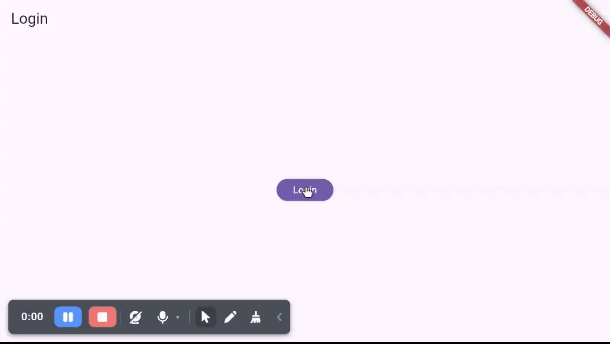

Here is the result and available code.

Source code: go_router_example

That's all for today. If you have any questions or suggestions, please comment. Thank you for reading.
